| Name: | WX |
|---|---|
| Diameter: | 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm |
| Length: | 175mm |
Product Description

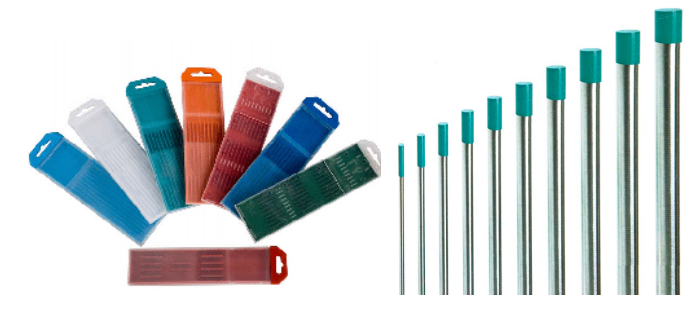

Description: Compound Tungsten Electrodes
Compound tungsten electrode is also known as three elements of rare earth containing 1.5% lanthana,0.8% zirconia, and 0.8% yttria. It is a non-radiation material. It is good to balance the electron mobility and evaporation rates, making tungsten electrodes to maximize their performances. For compound tungstenelectrode, it’s easy to start and restart arc. If the welding cycle more than 15 minutes, its life will be last longer. WS tungsten electrode tip burning significantly better than other tungsten electrodes. As three kinds of doping the oxide mixture in the electrode. It’s strict with the production process and the cost of production is more expensive.
| Model | Other content(%) | Impurities(%) | Tungsten content | Color standard |
| WX | 1.0-4.00 | ＜0.20 | Balance | Blue-green |
Diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm.
Packing: Plastic boxes.
